TEDLinx has indigenously developed a comprehensive ARINC 818 product suite

About ARINC818

​

ARINC 818 is a video interface and protocol standard developed for high-bandwidth, low-latency, uncompressed digital video transmission.

The standard, which was released in 2007, has been advanced by ARINC and the aerospace community to meet the stringent needs of high performance digital video. A key benefit of ARINC 818 is low overhead, which allows real-time transmission of video signals at high data rates—Up to 28 Gbps as of 2019, with prospects for higher speeds in the future.

Know more -->

ARINC818 Product suite

​

TEDLinx offers comprehensive ARINC818 product suite for Defense and Aerospace requirements. Our ARINC818 product suite will help you lower your cost, and time of implementation. We offer a range of solutions  – IP Core, Video and Protocol Analyzer, Converts,  Displays.


TEDLinx products are highly versatile and can be customized as per the project needs.

Features

ARINC 818-2 protocol compliant
Supports FC 1x, FC 2x, FC 3x and FC 4x link rates
Transmission Medium: Optical Fiber or 75-Ohm/100-Ohm/150-Ohm Copper Medium
Supports any video resolution up to Full HD @ 60Hz in a progressive format
FPGA based board used to receive and transmit the ADVB via SFP module
Incoming ADVB frames are tapped and captured by FPGA Logic for analysis
Captured ADVB frames transmitted to Host PC via PCIe port (x4 Gen2) for further analysis

Technical Specifications

x1 HDMI Video Input up to Full HD @60fps
x1 HDMI Video Output up to Full HD @60fps
1x SFP Connector for ARINC 818 Optical or 75-Ohm Copper Input

1x Quadrax Connector for ARINC818 100-Ohm/150-Ohm Copper Input
Commercial Grade Operation

Our  Products

Video & Protocol Analyzer (VPA)

To Analyze the incoming video and protocol

More details

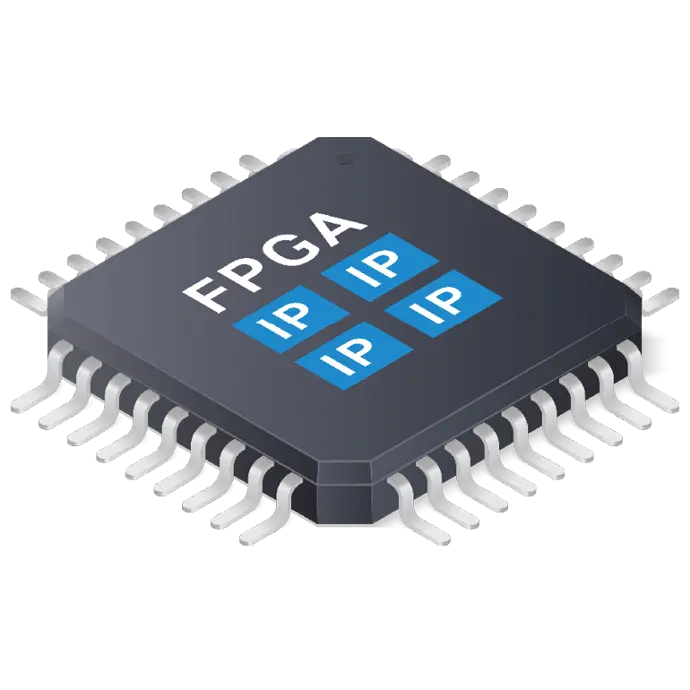

ARINC818-2 IP Core

Implement ARINC818 in your FPGA

More Details

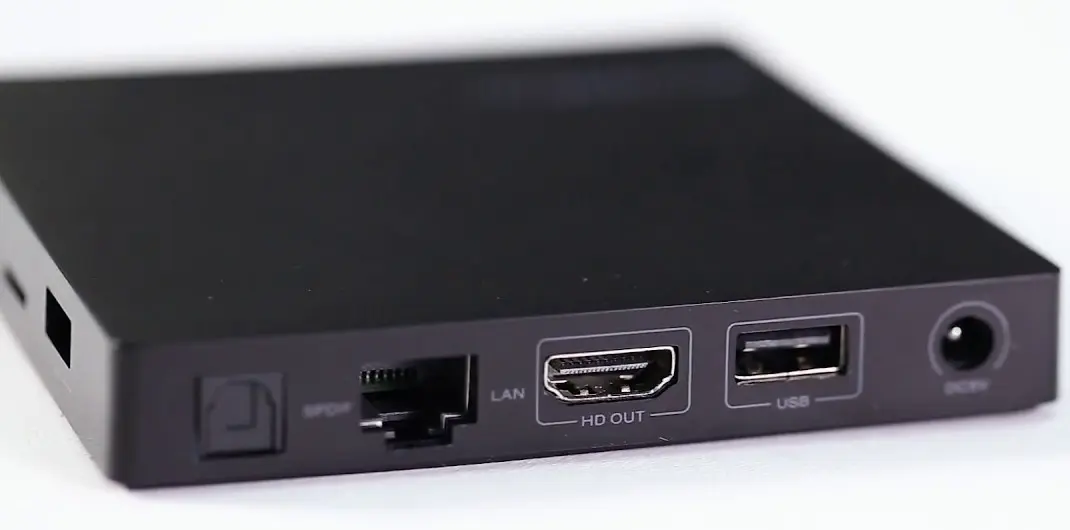

Converters

Convert ARINC818 to and from DVI, HDMI and other formats

More Details

Displays


More Details/

ARINC818 Product Details


 ARINC818 Video Protocol Analyzer


TEDLinx’s ARINC818 Analyzer (VPA) solution is a complete system that captures ARINC 818 video and, in real time, provides a comprehensive analysis by comparing the input packets against ARINC818 standards. ARINC818 VPA software efficiently captures, decodes the ADVB data, and displays the ADVB data, raw video data, and error status.

Our VPA is an excellent tool to detect and rectify errors in the ARINC 818 applications, simultaneously ensuring compliance of the system with the ARINC 818-2 standards.


Features
  • ARINC818-2 protocol compliant
  • Configurable multiple link rates: 1.062, 2.125, 3.1875, 4.250 Gb/s
  • Supports FC and Copper Interface inputs.
  • multilayer triggering (up to three levels) within payload
  • Pre- and post-trigger capture
  • Raw trace data captures up to 4 gigabytes
  • Real-time monitoring of link status, such as Sync Link; SoF Detect
  • Supports multiple ICDs -
    • Optical
      • a. Link – Optical Link
      • b. Resolution - (1280*1024)
      • c. Refresh Rate: 50fps
      • d. Bit/Pixel: 24
    • Copper:
      • a. Link – Copper Link
      • b. Resolution - 720*576 (progressive)
      • c. Refresh Rate: 50Hz,
      • d. Bit/Pixel: 16bpp (Colour Image)
  • Automatic Error Checking of line timing, video frame timing, video resolution, number of bytes per ADVB frame, and a host of other parameters.
  • Data search, Data histogram
  • View crucial video data: resolution; minimum, maximum, and average line timing; and idle counts between lines.
  • View raw data in four-byte hex lines: Offset, Time, Hex Data, Data Type, Status, and ADVB Frames Location. Each line of data is time stamped relative to the trigger, with the zero point easily reset.
  • Raw frame view with elaborated frame data
  • Container parameter information
  • Image view to see the video data
  • Live video display
  • Logging frame details to the disk for post analysis
  • Detailed analysis report in pdf format
  • Image to raw data tracing capability
  • Triggers based capturing feature
  • Container, Header details
  • SOFi, SOFn, EOFn, EOFt, CRC data identification
  • Frame Error details
  • Save frame data video as image
  • Color coding to identify error frames
  • Link speed supported 1.062, 2.125, 3.1875,
  • 4.250
  • Timing Analysis


Technical Specifications:

  • Compact and Portable Design
  • Portable Computer with TX and RX Channels
  • FPGA Based Solution with Real time performance
  • Trolley bag for easy movement
  • LED to indicate the Health and signal status

PC Specification :

  • Processor Intel i7, 2 GHz and above
  • RAM 16GB DDR4
  • Storage 512 GB
  • Display 16” Monitor
  • HID Integrated Keyboard and Mouse
  • Power Input 230V, 50Hz AC

ARINC818 Transmitter :

  • No Of Channels 1 Tx Channel
  • Resolution Configurable based on the Line rate
  • Line Rate Supports 1.062, 2.125, 3.1875, 4.250 G
  • Patterns Predefine Test Patterns
  • Image to ARINC818 Static image selection facility up to 10 images

ARINC818 Receiver :

  • No Of Channels 1 Rx Channel
  • Modes Live Video and Analyzer Mode
  • Resolution Configurable based on the Line rate
  • Line Rate Supports 1.062, 2.125, 3.1875, 4.250 G
  • Live Video Display in software

VPA Software Specifications :

  • Modes Live Video and Analyzer Mode
  • Resolution 30 Hz(800x600), 30 Hz (1024x768) factory configurable
  • Live Video Available in Live Mode
  • Real Time Indicators IDLE,SOFi, SOFn, EOFn, EOFt, CRC, Resolution
  • Image Transmission Static image selection facility
  • Pattern Transmission 2 Nos of Predefined Patterns
  • Real Time Logging Available in Analyzer Mode
  • Raw Frame Display Available in Analyzer Mode
  • Frame and Timing Parameters Available in Analyzer Mode

Deliverables :

  • ARINC818 Analyzer with 1-Tx, 1-Rx and VPA Software 1 Nos
  • Windows Drivers 1 Nos
  • Loopback Cable (Copper) 1 Nos
  • Manuals Soft Copy 1 Set


Back to Products​ ​

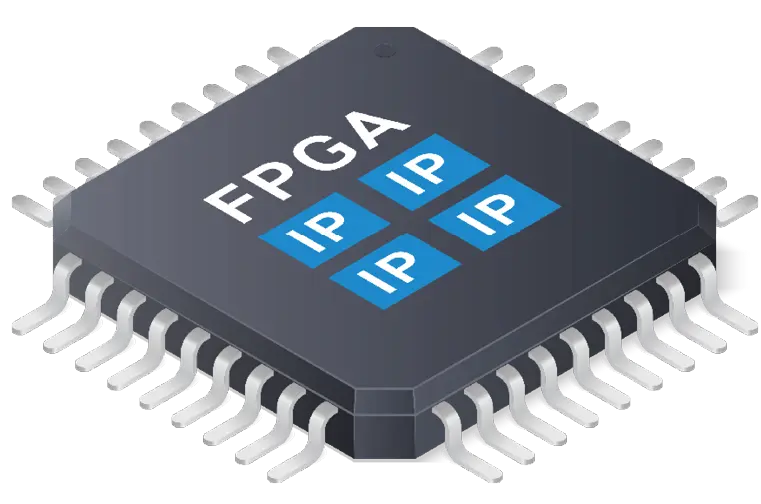

ARINC818 IP Core


TEDLinx's ARINC818 IP Core is compliant to ARINC818-2 specification. It allows an FPGA to easily interface with an ARINC 818 input or output. The core can be configured for a wide range of ICDs - 1080p @ 60Hz, 1280×1024 @ 60Hz and customer ICDs.

Provides option for user modifiable Video parameters.

Flexible settings - ARINC 818 IP Cores can be configured for different link speeds, line segmentations, and line synchronization methods.

Multiple resolutions - ARINC 818 IP Cores can be configured for different resolutions and pixel packing methods.

Real-time data updates - ARINC 818 IP Cores can update ancillary data in real time via a register interface.

Compatibility - Our ARINC 818 IP Cores can be implemented in Xilinx Kintex, Zynq


​

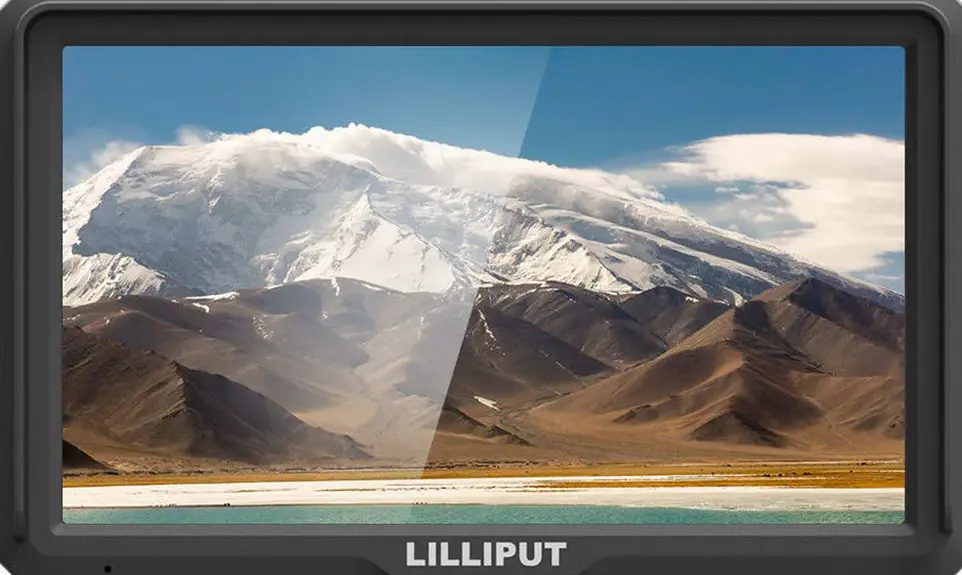

ARINC818 Display


ARINC 818 displays are specifically designed to receive and display video signals transmitted in this format. These displays are essential components in modern aircraft cockpits, providing pilots and crew members with critical information and situational awareness.

TEDLinx's ARINC 818 display is a rugged display module, powered by High-Performance FPGA to accept all ARINC 818 FC line rates upto 5Gbps and display the converted video data on the monitor for various ICD Specification with very low latency. It supports any input resolution  and will display a fixed resolution of Full HD @ 60fps video.

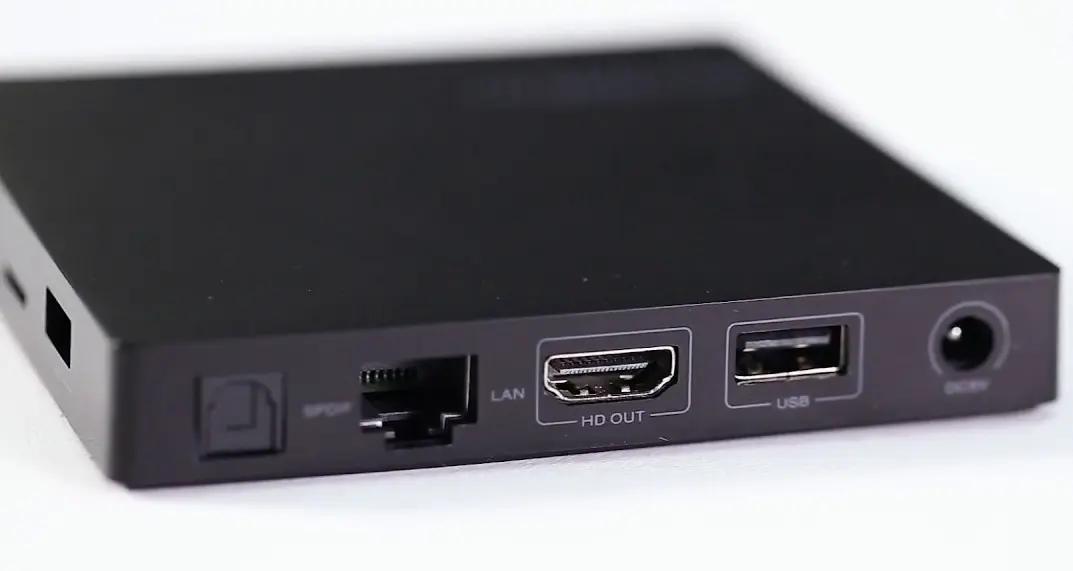

ARINC818 Converter


ARINC 818 Converters facilitate the conversion of video signals between ARINC 818 format and other video standards.These converters play a crucial role in integrating different video sources and destinations into a unified ARINC 818 network.

TEDLinx's ARINC 818 converter is a rugged standalone module with the capability for ARINC 818 to HDMI conversion, HDMI to ARINC818 conversion. Our converter is ARIN 818-2 protocol compliant.
