ARINC 818

In aircraft, an ever-increasing amount of information is supplied in the form of images, this information passes through a complex video system before reaching cockpit and crew displays. Video systems include: infrared and other wave length sensors, optical cameras, radar, flight recorders, map/chart systems, synthetic vision, image fusion systems, heads-up displays and heads-down multifunction displays, video concentrators, and other subsystems. Video systems are used for taxi and take-off assist, cargo loading, navigation, target tracking, collision avoidance, and other critical functions. ARINC 818 builds on the Fiber Channel Audio Video (FC-AV defined in ANSI INCITS 356- 2002) protocol which was used extensively on video systems in the F18 and the C130AMP. Although FC-AV has been used on numerous programs, each implementation has been unique.

ARINC 818 provides an opportunity to standardize high speed video systems. The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed Digital video transmission.

The standard, first introduced in 2007, has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems. Even prior to its release, ARINC 818 has already been adopted by two major aerospace programs, the Boeing 787 and the Airbus A400M.

ARINC 818 is the proven commercial standard and military de facto standard for high-performance video systems.

​

Benefits

• Low Overhead
• Real-time transmission of video signals at high data rates (high bandwidth)—Up to 28 Gbps as of 2019, with prospects for higher speeds in the future.
• Low-latency, which amongst other suitability, ensures that a head-up display matches a pilot’s visual input.
• Uncompressed Digital Video transmission
• Flexibility - not tied to any one physical layer or video format
• Opportunity to standardize high-speed video systems
• High reliability - 2 layers of error checking available
• Networking capable
• Multiple video streams on a single link
• Multiple timing classes defined
• Suitable for mission-critical applications (up to DAL A)

Applications

The ARINC 818 digital video interface and protocol standard is used throughout commercial and military cockpits for avionics display applications. As military video systems continue to increase in complexity in and out of the cockpit, for example in intelligence, surveillance, and reconnaissance (ISR) sensor systems, the demand for ARINC 818 solutions is growing.

Although ARINC 818 was designed for avionics, it is already being utilized in sensor fusion applications, where many sensor outputs are multiplexed onto a single high-speed channel. ARINC now supports approximately 15,000 airplanes, 300 airlines, 150 airports, and 200 train systems, as well as more than half of North America’s nuclear power facilities and other critical infrastructure.

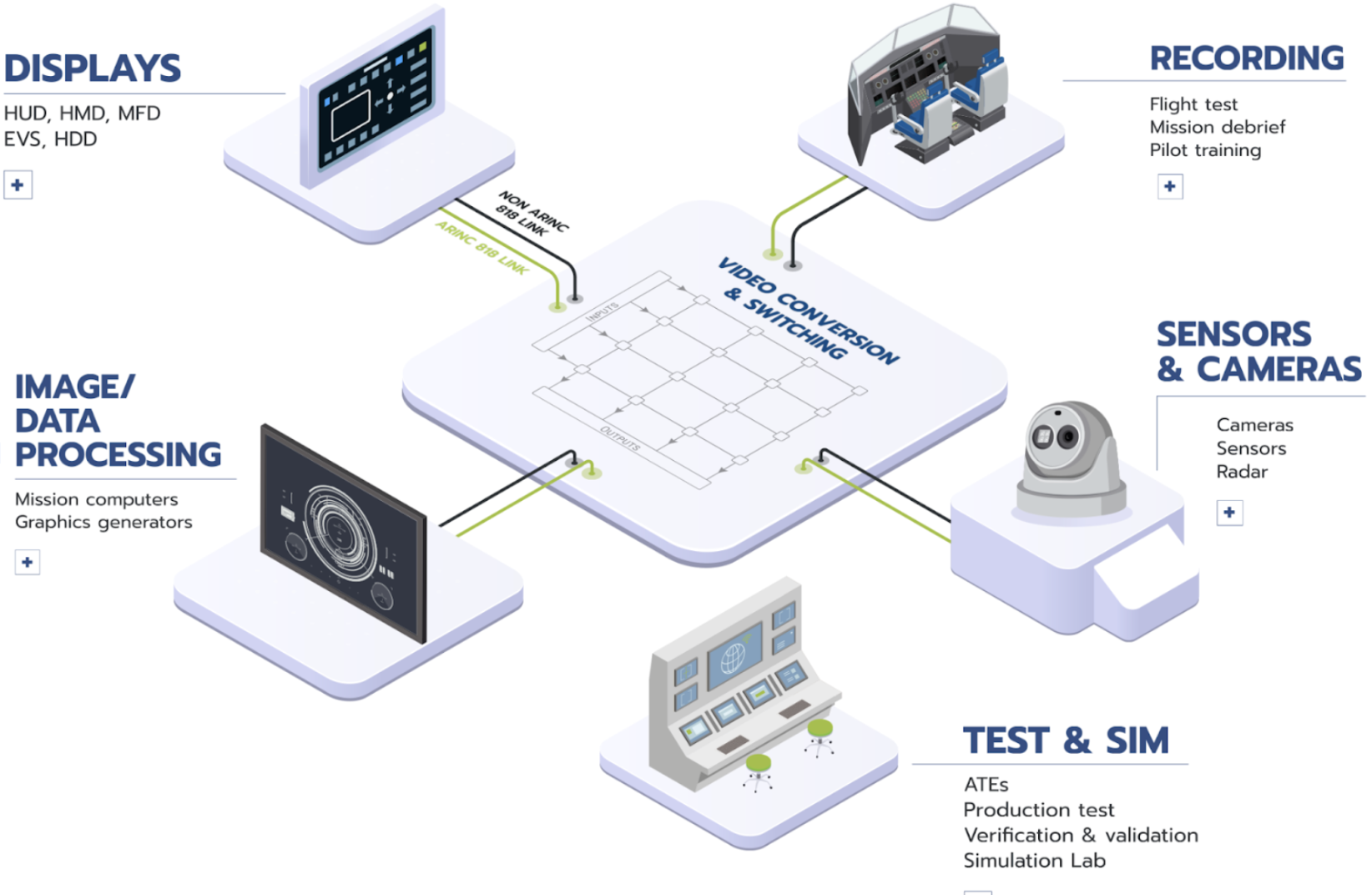

ARINC 818 video systems include infrared and other wavelength sensors, optical cameras, radar, flight recorders, map/chart systems, synthetic vision, image fusion systems, heads-up displays, heads-down multifunction displays, and video concentrators. These video systems are used for taxi and take-off assist, cargo loading, navigation, target tracking, collision avoidance, and other critical functions.

Non-military Applications

A818 is being used in some medical applications. Ongoing R&D to use A818 on large ships and trains, where they're going to be moving video for hundreds of meters.
